Northrop Grumman’s heritage in unmanned ground systems began with the challenges encountered by UK MoD Explosive Ordnance Disposal (EOD) personnel in addressing the terrorist threat in the early 1970s.
From very simple beginnings, the first Wheelbarrow bomb disposal vehicles were developed and have evolved with advances in technology offering increased capability to the EOD operator. The Wheelbarrow has now developed to Mk9, and is regarded by EOD specialists’ world-wide as the most capable and reliable unmanned vehicle available.
Today multi layered solutions from detection and planning to response and destruction,  are designed to offer all EOD team users a modern, fast, reliable and effective solution to combat the latest threats associated with today’s modern IEDs.

CUTLASS

• Improved range and video quality up to 1km with fully secured digital wireless communication
• Arm Speed, Terrain Mobility over x4 faster than other UGVs up to 12 (kph) Kerb climb 0.3 (m)
• Stair Climb 37°, Gap Cross 0.5 (m), Self-righting capability, Pitch and roll sensors along with Load cells provide auto stability system
• Tool rack with Automatic tool change for 8 tools/weapons no need to return to control point for new tools.
• 9 degrees of freedom modular arm – the most versatile capability in the world, can be exchanged for a heavy duty arm capable of lifting 100(kg) or handling large weapon shocks.
• All cameras are colour and come with lighting this combined with onboard microphone give superb situational awareness.
• Dedicated data channel for additional sensors (Ethernet speed), tested with multiple CBRN equipment deployment.
• Environmentally suitable for all climates. -15°C to +60°C dust/rain, vibration, shock certificated, fording depth 0.3(m)

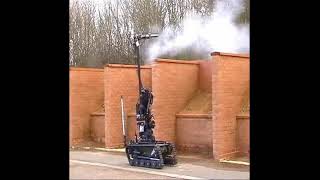

Wheelbarrow Heritage

Today, at our facility in Coventry, we have created a centre of expertise for the systems design, integration and assembly of some of the most trusted unmanned ground vehicles. Our heritage has been built on providing the most capable and recognisable remote controlled bomb disposal platform the ‘Wheelbarrow’ to the UK Ministry of Defence (MoD).

• Wireless hand controller; joystick vehicle control
• Improved range and video quality
• Dedicated data channel for additional sensors
• Low profile 3 fingered gripper with integral ceramic cutter
• Tested with multiple CBRN equipment deployment
• 7 weapon firing releases – offers a large variety of tool installation without the need to change mid-operation

Explosive Ordnance Disposal (EOD)

The capability of the Wheelbarrow platform and its unmatched performance has directly led to its international success and it is still in active service world-wide as the platform of dependable choice by the most demanding and dedicated EOD/Counter-Improvised Explosive Device (CIED) teams.

Recently, we launched the Wheelbarrow Mk9 as the latest platform with its combined strengths of speed, climbing, lift and payload capacity. This has been enhanced to improve the ease of operator use with digital command links, intuitive touch-screen controls and sensors for improved situational awareness.

F6 Series

• Dual mobility capability
• Manipulator arm with 7 degrees of freedom
• JAUS ( Joint Architecture for Unmanned System) software operating system
• Multi-mission tool/sensor mounts with plug and play capabilities
• Rotation: grip rotation – continuous 360°
• On screen graphics showing vehicle orientation, feedback from on-board sensors and errors and failures of joints

HD Series

• Grip rotation 360°
• Common, modular electronics with JAUS (Joint Architecture for Unmanned System) compliant software
• Moulded front-drive range integrates microphone, speaker, drive camera, firing circuits and LED lighting
• Quick release lithium polymer battery
• New manipulator options with 6 degrees of freedom and quick release gripper/tool system

Titus

• New manipulator design with all internal components provides superior capability, in a quick release, versatile package
• State of the art diagnostics and troubleshooting including on-board diagnostics LCD screen
• Quick-release articulators provide unmatched stair climbing & mobility, or can be removed for narrow spaces.
• Quick release pan and tilt can be removed with a twist of the wrist for low clearance areas.
• Optional tazer and thermal imager
• Integrated 1W or 5W radio for clear audio and video
• Picatinny rails for sensor & payload attachment

ANDROS™ Unmanned Ground Vehicles

As part of Northrop Grumman, Remotec US Inc. manufacture the ANDROSTM range of EOD unmanned ground vehicles. Outside of the Americas, Remotec UK Ltd markets the latest developed ANDROSTM F6 Series Model no. CX ( also known as the F6B) and HD Model no. SEL.

The larger ANDROSTM F6B platform offers a dual mobility capability: quick release pneumatic wheels for rapid width reduction and patented articulating track to traverse rough terrain.

It has a manipulator arm with 7 degrees of freedom ensuring optimum dexterity and offers screen graphics showing vehicle orientation, feedback from on-board sensors and errors and failures of joints.

The medium sized ANDROSTM HD SEL model is a more compact and robust vehicle that can travel up to speeds of 8.4km/hr and has an extremely durable moulded front-drive range integrating a microphone, speaker, drive camera, firing circuits and LED  lighting.

Moving into CBRN and Integrated Solutions

It is has been our privilege to work and partner with the EOD/IED teams and to understand their complex mission objectives in a turbulent and evolving threat environment.  We can provide technical solutions from our increasing range of vehicles that can be configured according to the operational requirements of the user including EOD, ground surveillance, hazardous material (HazMat) and chemical, biological, radiological, and nuclear (CBRN) missions.  Furthermore we are now providing bespoke system solutions, integrating our unmanned ground vehicles with command and control systems, the TouchTable® collaborative environment and service support vehicles to produce a standalone mobile capability for locating, identifying and disarming explosive and other hazardous devices, collecting forensic evidence and carrying out criminological analyses.

Northrop Grumman Corporation is a leading global security company whose 120,000 employees provide innovative systems, products, and solutions in aerospace, electronics, information systems, shipbuilding and technical services to government and commercial customers worldwide.

Digital RF offers complete counter terrorist and surveillance  systems, bespoke to a client’s need including the latest  technology, training and field support.

Its staff and supporting engineers have worked together for  some 40 years in designing RF systems.

Digital RF is a UK Company which Designs and Manufactures all  its own products in the UK including; Software, Digital FPGA processing, Modulation and Frequency converters, Power Amplifiers, Detectors, Antennas and more. Maintaining full  control of design and manufacture enables Digital RF to fully  support its customers for the entire product range.

The Company
Digital RF was established in 2003 to design and build jammers to supply into the security market with the growing use of IEDs.

The company has continued to grow, supplying into conflict areas such as Iraq and Pakistan, as well as many other countries across the globe.

Digital RF maintain a policy of keeping all key design skills within the company. The company staff and supporting staff comprise of RF design engineers, software engineers, mechanical designer, system engineers, project manager, test  and assembly staff.

The  Products

Wide-band Jammers:

Blackshadow

In the Company’s support of counter terrorist systems it manufactures a range of high power HF, VHF, UHF and Microwave jammers which have been designed by the company.

These include:

VIP Protection Jammers

The Black Shadow VIP Protection Jamming system can be fitted to most vehicles for a mobile convoy protection or placed in an area of Threat or in a building.

Each Jamming Module within Black Shadow radiates multiple programmable jamming carriers that can instantaneously jam selected frequency bands.

Portable Briefcase or Backpack Jammers

These specialist jammers incorporate the latest jamming technology in a compact integrated system is able to be equipped with a wide range of frequency jamming modules. In a compact system they contain Jammer modules, antennas, battery, power supply and optional remote control.
Both these are ideally deployed to protect VIP’s, Military/Security staff or EOD teams from RCIEDs.

There are currently over 300 Black Shadow Jammers sold into Military, NATO and Civil Defence organisation over the world.

GSM Detect, Block and Counter Measures

In today’s society having tools to detector, jam and monitor mobile phone communications are essential in the prevention of terrorism. Digital RF have developed a range of products to equip security personnel with the latest technology in Mobile phone counter measures.

Cell-Block

Preventing the use of mobile phones and communications devices in Prisons and Secure Facilities is an important part of security and crime prevention.

Digital RFs jamming technology has been deployed to detect, jam and monitor mobile phone activity in these institutions under the name Cell-block.

Utilising the Blackshadow technology a comprehensive system of jamming, frequency monitoring, ethernet control, detector activity logging and GSM network status is provided to the user.

Network Guard

Digital RFʼs Cell-Monitor provides rapid notification of any rogue BTS attempting to covertly listen to mobile phones. Cell-Monitor is the essential tool to independently monitor the BTS activity around sensitive buildings / offices. By continuously scanning all available networks rogue BTS activity can be seen instantly and the position of the rogue BTS source located on a map.

Cell-Interception

Taking both RF and Digital technology to the next level Digital RF have developed an IMSI / IMEI grabber to locate and identify target phones and enable access.

Cell-Seeker
Network Mapping System

Cell-seeker is the essential tool to independently monitor or map multiple mobile networks.

By continuously scanning all available networks and recording the GPS position an RF ‘finger print’ of the environment is recorded.

Chameleon

Chameleon is a digital phone system which allows designated users to use their own mobile phone to call each other and make & receive external calls while preventing all other people in the coverage area of the jammer.

Hornet – Explosives Trace Detector

The Digital RF Hornet provides the next generation technology for counter terrorism.

Using established Laser Scanning techniques the Hornet can detect explosive traces or drugs over long distances. Able to detect explosives traces on  vehicles, packages and Suicide Bombers, the Hornet is an essential tool for modern Security operations including: Boarder Control, Check Points and Peace Keeping Forces.

The Digital RF Hornet can be provided vehicle mounted or on a portable tripod.

The Hornet extends the capability and range of human operation in various challenging security situations.

Other Activities:

MDS – Magnetic Detection System

MDS is a comprehensive automatic detection system for entrance security control.
Comprising of a speed ramp and barrier fitted at the entrance of a building or car park it will detect any magnetic material, such as a magnetic bomb / RCIED or Tracking device attached to the vehicle chassis.

While the vehicle travels over the system the vehicle is automatically scanned and the barrier entrance synchronized to allow or deny entry.

Microwave Links

The company is also active in promoting the use of fixed and mobile COFDM digital radio transmission systems for transmission of video from inside to outside a building or from a street threat to a mobile control centre.

Blackshadow Jammer Globally….

Due to the confidential nature of the systems supplied by Digital RF it is not possible to be   specific about all projects however the following is a list of some countries in which jammers   have been deployed and some applications.

UK - Government
FRENCH POLICE
IRAQ POLICE
KENYA – UN
PAKISTAN – MOI / MOJ
SUDAN – UN
THAILAND – RTAF and Police
BANGLADESH – MOI
EGYPT - MOI
CHILIE - Security Forces
JORDAN - MOI
NIGERIA - Government
DUBAI - Police
and more......

Telerob GmbH trading as Cobham Unmanned Systems is a leading provider of integrated homeland security solutions and unmanned platforms, utilizing over 30 years of expertise in this highly specialised field.
Cobham Unmanned System' mission is "To develop machines, equipment and systems that protect or replace human beings in situations where their presence would be either impossible or place them at great risk".

EOD / IEDD Equipment, EOD Robots and Service Vehicles

Whether the task at hand is disarming an Improvised Explosive Device (IED) with a remote controlled robot; investigating NBC hazards with an unmanned sensor platform; or deploying mobile, fully networked measurement, monitoring and intervention systems to ensure the safety and security of critical infrastructure, Cobham's top priority is always the protection of people and their surroundings.

Cobham Unmanned Systems' product range includes mobile unmanned sensor platforms with manipulators for taking samples of suspicious substances; vehicles equipped with state of the art robots for detecting and disarming of Improvised Explosive and Incendiary Devices (IED's); and integrated mobile systems for dealing with full spectrum of asymmetric threats.

Remote Controlled Robotic Solutions

More than 700 Cobham Unmanned systems are in service today, supporting bomb disposal officers and first responders in nations around the world.
Distance means safety; this basic rule with regard to disarming explosive devices means that bomb disposal officers increasingly prefer EOD Robots as their tool of choice.

Not only bomb disposal officers are exposed to a wide and varied range of hazards today; rescue forces and first responders increasingly get into situations that involve an extremely high level of personnel danger. Unmanned robotic systems have been developed to allow inspection and deal with hazards from a safe distance.

Building on this exceptional experience base, highly advanced solutions can be offered today; semiautonomous and remote controlled robots that can take samples of suspected biological or chemical warfare agents, plus reconnaissance platforms for CBRNE detection.

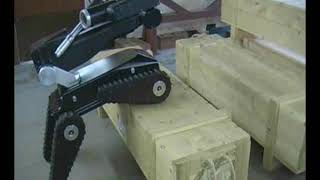

telemax Explosive Ordnance (EOD) Robot

The telemax robot is the most versatile EOD / Hazmat robot available on the market today. It packs up small enough to fit in the back of a small SUV but is able to reach over 2,4m tall.
A four-track running gear has been used for the first time in a vehicle of this size, which offers superior mobility compared to other forms of running gear. This means that it can handle gradients of 45° or 100% without difficulty. It can overcome obstacles of up to half a meter in height without problems and also trenches of 60 cm in width.

The basic principle of 'less is more' applies with special forces if the situation involves working in confined spaces; in all cases where the big EOD robot cannot be used its little brother provides that vital distance between the bomb disposal engineer and the explosive device (IED, EOD, Bomb) that can mean the difference between life and death: in aircraft, in subways, in buses or other means of public transport.

The telemax has a unique set of features making it highly mobile and suitable for operating in confined spaces; the four individually articulating tracks are controlled separately and can be moved individually in pairs or all together as desired. Additionally, an intelligent controller sets running gear configurations to cope with the relevant situation at the press of a button.

These features make it easier for the operator to control the vehicle, especially in tricky situations such as narrow stairways and high steps. Inclination sensors ensure that the robot always maintains its balance. If a travelling speed of 4 km/h is not enough, then the high speed version offers up to 10 km/h.

The operating concept of the telemax is almost revolutionary by comparison to other robots on the market. It is the only EOD robot in the world that has a so-called TCP controller. TCP stands here for Tool Center Point, the middle point of the tool, or more simply, the gripper or disruptor. This kind of manipulator control makes the telemax the best in class robot in manipulation.

telemax is the only robot in this class that has two tool magazines incorporated into the chassis. This means two additional tools / firing systems can be used on an operation without needing to go back to the starting point. The manipulator automatically takes out the additional tools at the simple press of a button.

NBCmax CBRNE Service Robot

The NBCmax service robot is a universal mobile sensor platform that can be equipped with a broad palette of sensors to detect and investigate chemical, biological, explosive or toxic substances (CBRNE).

Not only bomb disposal engineers are exposed to a wide and varied range of hazards today. Rescue forces and first responders such as the fire service, technical rescue specialists or international aid forces increasingly find themselves in situations that involve an extremely high level of personal danger. This includes operations that involve hazardous materials, toxic substances or even biologically harmful materials such as viruses or bacteria. Once such substances have been released-whether through accidents or intentionally-the rescue forces are exposed to maximum danger if working manually.

The NBCmax has been developed to allow the response forces to inspect, and if applicable deal with hazards from a safe distance. The data collected, ranging from gas concentration and gamma radiation through to evidence of explosives, is transmitted back to the control panel of the robot to be processed by the operator.

tEODor Explosive Ordnance (EOD) Robot

tEODor is an Explosive Ordnance Disposal (EOD) and observation robot that sets the standard worldwide.
Distance means safety; robust, reliable and flexible in use, the innovative bomb disposal system provides a maximum degree of safety and protection. The basic model is designed as a twin-track vehicle with extremely good manoeuvrability and good properties on open ground; the running gear, equipped with sprung rollers, is characterised by the ability to climb at angles of up to 45°. The individual links of the robust steel track can be easily replaced if they become worn or damaged.

The high-torque drive units work with continuous four-quadrant control, both backwards and forwards. Both the vehicle and the manipulator can be operated with extreme delicacy. When the vehicle stops on slopes or gradients the safety brakes operate automatically to hold the vehicle in place.

EOD - IEDD TEL600 Service Vehicles

The TEL600 series is a family of vehicles which deal with the demanding tasks associated with the location, identification and removal of explosive and incendiary devices, especially in the event that there is suspicion of a dirty bomb.
The range encompasses a compact Rapid Response (S) vehicle based on a fast four wheel drive (4X4) vehicle to take immediate action at the crime scene; medium-sized (M) search and detection vehicles for location and identification operations; and fully equipped IED / NBC response systems (L) weighing up to 8 tons.

The XL and XXL systems, based on medium-sized and heavy trucks, represent the highest standard in Bomb Disposal vehicles, providing security personnel with the optimum amount of equipment to cover every eventuality. Kit ranges from a simple hook and line set through to various EOD robots and unmanned reconnaissance platforms, all the way up to a NBC robot with a fully automatic system to take samples and investigate hazardous biological materials. Systems are made-to-order based on individual customer specifications.

The leading provider of EOD and IEDD tools, system and services made in Germany.

Telemax: High mobility, versatile manipulation and tool change capability combined in a small shape.

NBC-Max: Easy and reliable remote sampling and measurement of hazmat material.

tEODor: The heavy duty EOD robot with tool change capability.

EOD / NBC Service Vehicles: Designed to satisfy customer needs.

AB Precision (Poole) Ltd, (ABP) an integral part of the highly successful HWH Investments Group.  The current portfolio of bespoke engineering companies encompass operations in the United Kingdom, United States of America, Germany, Brazil, China, India and Australia, with a turnover in excess of £90 million (US$ 140 million).
Established in 1966, ABP designs and manufactures a wide range of homeland security products for Military,  Police and security end users worldwide including disruptors, robotic vehicles (ROV’s) and a range of EOD tools.

Many of ABP’s products are ‘in service’ with the UK MOD, including its long standing family of disruptors comprising Needle, Pigstick & Hotrod. In addition to our robotic vehicles, also in operation ‘in theatre’.

In recent years the disruptor products have been developed and expanded to include both recoilless and most recently lightweight versions.  These compliment the nature of today’s requirements to keep kit weight to a minimum whilst not compromising performance.

Military Disruptors:
Needle Plus Disruptor

A new development of the highly successful Needle.  Needle Plus has the advantage of a redesigned breach allowing simpler operation, in line with the Pigstick and Hotrod, also reducing training time.  The Needle Plus can also be deployed from a robot, mounted in a purpose designed stand or placed on a sandbag.  Also available in a lightweight version.  Needle can fire the Flying Scalpel to allow a non conductive ceramic blade to remotely cut a command wire or cable.

Needle Disruptor

A conventional disruptor designed to disrupt small envelopes, packages and items.  Can be deployed from a robot, mounted in a purpose designed stand or simply placed on a sandbag.  Also available in a lightweight version.  Needle can fire the Flying Scalpel to allow a non conductive ceramic blade to remotely cut command wire or cable.

Pigstick Disruptor

The disruptor of choice for many operators, used in the main training schools and deployed with forces worldwide the Pigstick is both simple to set up and easy to deploy.  Typically used against briefcases and small parcels etc.  A conventional disruptor which can be stand mounted or carried on an ROV.  A new lightweight version weighs only .93kg (stainless steel version 2.95kg) allows a team greater flexibility and the ability to carry less payload. Due to the recoil a new restraint parachute system has been introduced.

Hotrod Disruptor

The largest standard (1) disruptor in the conventional range.  Hotrod compliments both its smaller ‘family’ members (Needle and Pigstick) in providing the greatest capability for use against thicker walled packages, suitcases etc. Stand or ROV mounted to provide the ultimate power in a conventional disruptor.  A new lightweight version weighs only 1.6 kg (stainless steel version 3.5kg). Due to the recoil a new restraint parachute system has been introduced.

(1)    Other more powerful disruptors are available.

Please contact ABP for more information.

ABL2000 Disruptor

Introduced in 2009 (I think about 2004) the ABL2000 offers all the benefits of a Pigstick in terms of ease of use and operational characteristics but has the additional advantage of being 100% recoilless.  The ABL2000 can be simply fired off a sandbag, stand mounted or carried on a wide selection of ROV’s including Cyclops and Guardian.  A trained operator can set up the ABL2000 ready for firing in less than 2 minutes. A new lightweight version weighs only 1.6 kg (stainless steel version 3.2kg).

ABL3000 Disruptor

Proving a significant increase in performance over the ABL2000 this larger disruptor is suitable for dealing with Hotrod type targets but offering the advantages of a fully recoilless disruptor. The ABL3000 can be simply fired off a sandbag, stand mounted or carried on a wide selection of ROV’s including Cyclops and Guardian. A new lightweight version weighs only 3.2 kg (stainless steel version 4.2kg).

De-Armer/Stand Back Attack

By simply varying the front barrel the ABL2000 & ABL3000 can be used in two additional configurations.  A de-armer barrel allows the firing of slugs, fork and a blade whilst the SBA barrel permits up to a 5m stand off from a target.  Aiming is by a day visible laser fitted to the disruptor barrel.

Long Range Stand Back Attack

A development of the ABL3000 offering Stand back attack distances of up to 30 metres using a “Rifle Sight” aiming system which can be operated in manual mode (with local video display) or interface with the video system on an ROV providing a remote aiming capability. An infra-red light system is also available for covert night time use. Utilises standard ABL3000 de-armer barrel and standard ammunition.

Largest Recoil Reduced Disruptor ABL4000

ABP’s largest recoil reduced disruptor, only manufactured in titanium to keep the weight to a minimum.  The ABL 4000 is specifically designed to deal with the highest level targets where penetration of a thick walled device is required.

Mantis Ultra Lightweight Disposable Disruptor - ULDD

Mantis is an ultra lightweight disposable disruptor that defeats Improvised Explosive Devices (IED’s) with consistent reliability. Mantis performance is broadly comparable to Pigstick Performance. Mantis is designed for applications where weight and ease of deployment are critical such as Special Forces operations.

Scorpion Ultra Lightweight Disposable Disruptor - ULDD

Scorpion is an ultra lightweight disposable disruptor that defeats Improvised Explosive Devices (IED’s) with consistent reliability. Scorpion performance is broadly comparable to Hotrod Performance. Scorpion is designed for applications where weight and ease of deployment are critical such as Special Forces operations.

Remotely Operated Vehicles (ROV)

Our Remotely Operated Vehicles (ROV) fleet includes the Cyclops - recent versions of which serve with the UK MoD as 'Chevette' - and the more recent addition the Guardian. Designed to work in confined spaces such as aircraft and trains, the Cyclops /Guardian have been developed enabling the mounting of up to four weapons, a manipulator or a combination of both, as well as real-time x-ray equipment and a variety of detectors including chemical and explosives vapour and radiation detectors.

Portable and compact, the addition of a big wheel kit to the standard Mk4D Cyclops and Guardian increases versatility and makes it suitable for use by rapid response teams in areas not accessible to the carrier vehicle. Both offer excellent stair climbing abilities and are controlled via either an RF link or fibre optic command cable.  Now available as fully digital platforms with COFDM radios.

Military De Armers

Dragon (ABL900) De-armer

The Dragon (ABL900) de-armer render a variety of air dropped munitions, land service ammunition and IED’s safe. This is achieved by projecting appropriately shaped steel slugs at high velocity into the fuzes or pistols of conventional munitions or into the bodies of IED’s.

Limpet Mine Disposal Equipment - LMDE

Limpet Mine Disposal Equipment has been specifically developed to disrupt thin cased mines typically attached to the hull or structure of a target vessel or installation. Based on the proven foundations of our Pigstick disruptor, the LMDE is supplied with a magnetic mounting stand and floats to allow deployment and attachment by a diver.

EOD Tools

Miniature Exploder (Minex)

Minex is a handheld exploder designed to initiate detonators such as the L2A1. Currently in use with the UK MoD and other Special Forces worldwide, the exploder is engineered to provide ease-of-use in challenging environments. Minex can be supplied with a Shock Tube Adaptor, enabling initiation of Non-Electric (Nonel) shock tube products for maximum operator flexibility.

Abrasive Water-Jet Cutting System (AWCS)

ABP’s AWCS is a high integrity, flexible cutting system currently in use by the UK MoD. Developed for use in Explosive Ordnance Disposal (EOD) or other hazardous applications, the AWCS enables EOD operators to remotely carry out decommissioning operations on uncleared and unexploded munitions in a safe and controlled environment.  Specifically designed to work in harsh environments, including operation in hot and cold climates and up to three metres of seawater.

 Crimp Tool

In service with the UK MoD and security agencies around the world, the ABP Crimp Tool is designed to crimp detonators and igniters to safety fuses. Crimps Igniferous detonators to safety fuse with consistent reliability.  Design incorporates features to allow additional functionality as a wire stripper, wire cutter, screwdriver or rectifier.

Mine Prodder ABL700

The ABL700 is designed for locating Anti-Personnel Mines in situations where a magnetic device could detonate a mine. Currently in use with the UK MoD and security agencies around the world, the ABL700 is a popular military tool designed to withstand the rigors of today’s most challenging environments and can locates mines buried at depths of up to 250mm.

Non-Magnetic Toolkit

Designed for use with Unexploded Ordnances (UXO’s) where magnetic fields may increase the threat of detonation, the Non-Magnetic Toolkit delivers a comprehensive set of tooling for high-risk environments.  Non-Magnetic to eliminate risk of detonation in magnetic-sensitive environments.  Available as 36, 85 or 100 piece kit, can be requested in imperial, metric or both size standards, guaranteed against STANAG 2897 Annex C.

AB Precision (Poole) Ltd (ABP) is pleased to announce the recent acquisition by its parent company (HWH Investments) of 100% ownership of Advanced Detection Technology LLC ('ADT'). Located in Maiden, North Carolina, ADT is a world-renowned security and access control solutions manufacturer providing under-vehicle inspection systems, license plate recognition products, perimeter/facility access control systems and video surveillance solutions to a wide range of US and international customers.

Under Vehicle Inspection Systems

LowCam™ VI54

• Portable Under Vehicle Inspection
• Under 1 minute set-up!
• Full PC, database capabilities
• Remote, stand-off inspections
• Portable and lightweight
• Live viewing, playback controls

LowCam™ VI110

• Single Image Under Vehicle Inspection
• Communicate with Grasp
• Under 3 minute set-up!
• Single Image UVIS
• Comparative Capabilities
• Inspect vehicles up to 10mph

LowCam™ VI108

• Portable Under Vehicle Inspection
• Portable or fixed UVIS
• Installed in 3 minutes!
• License Plate Recognition Option
• Remote, stand-off inspections
• Inspect moving vehicles up to 10mph
• Live viewing, quad or linear formats

LowCam™ VI104

• Fixed, In-Ground Under Vehicle Inspection
• Remote, Stand-off Inspections
• Inspect Vehicles up to 10mph
• Optional Air-Debris Removal
• Day/Night Operation
• Fast, Reliable Inspections

Other complimentary products available:

• FastGate™ Access Control System
• FastPlate™ License Plate Recognition Systems
• ForeSight™ and SunVeillance™ Video Surveillance
